Glass

HYDRONICS MEETS ELEGANCE

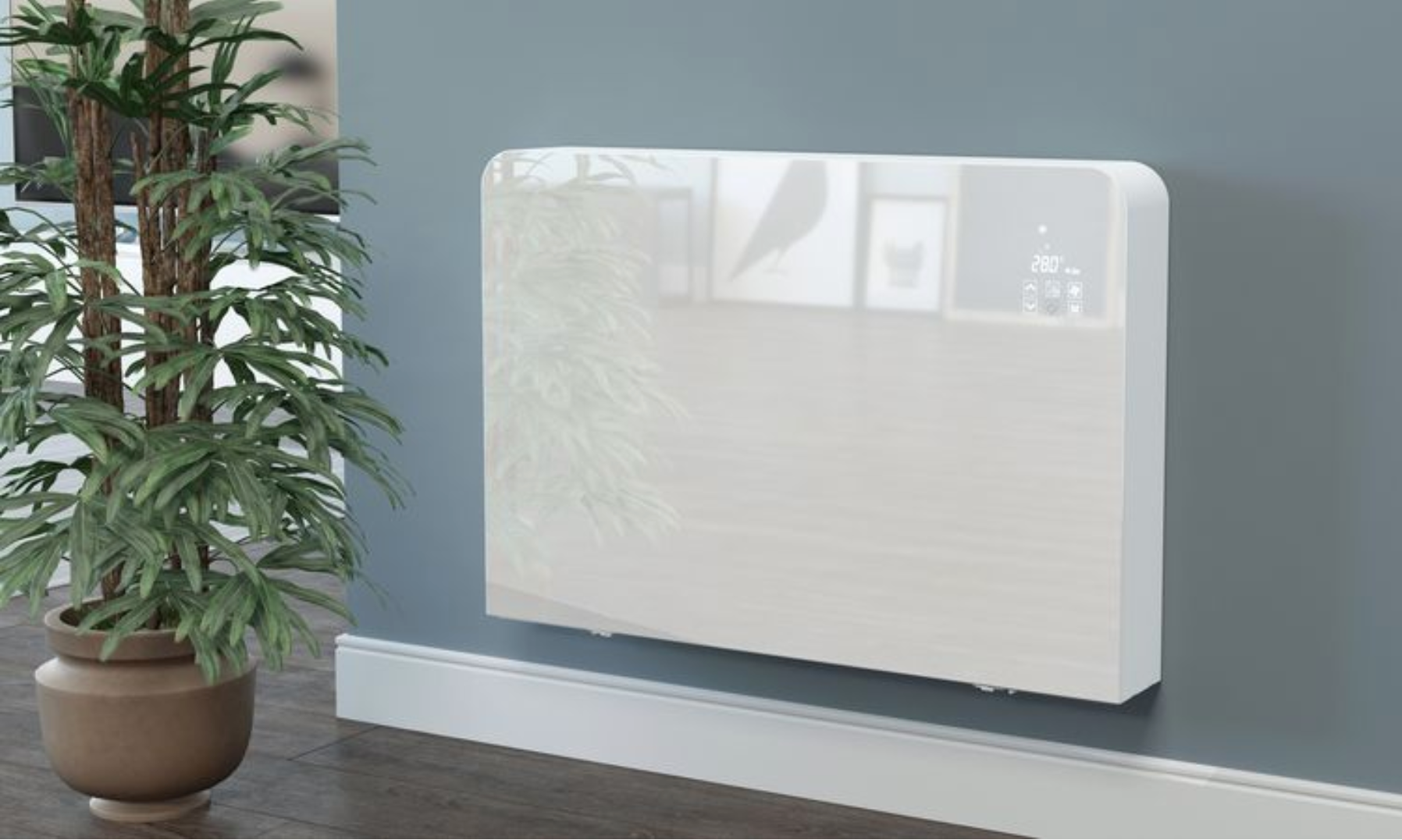

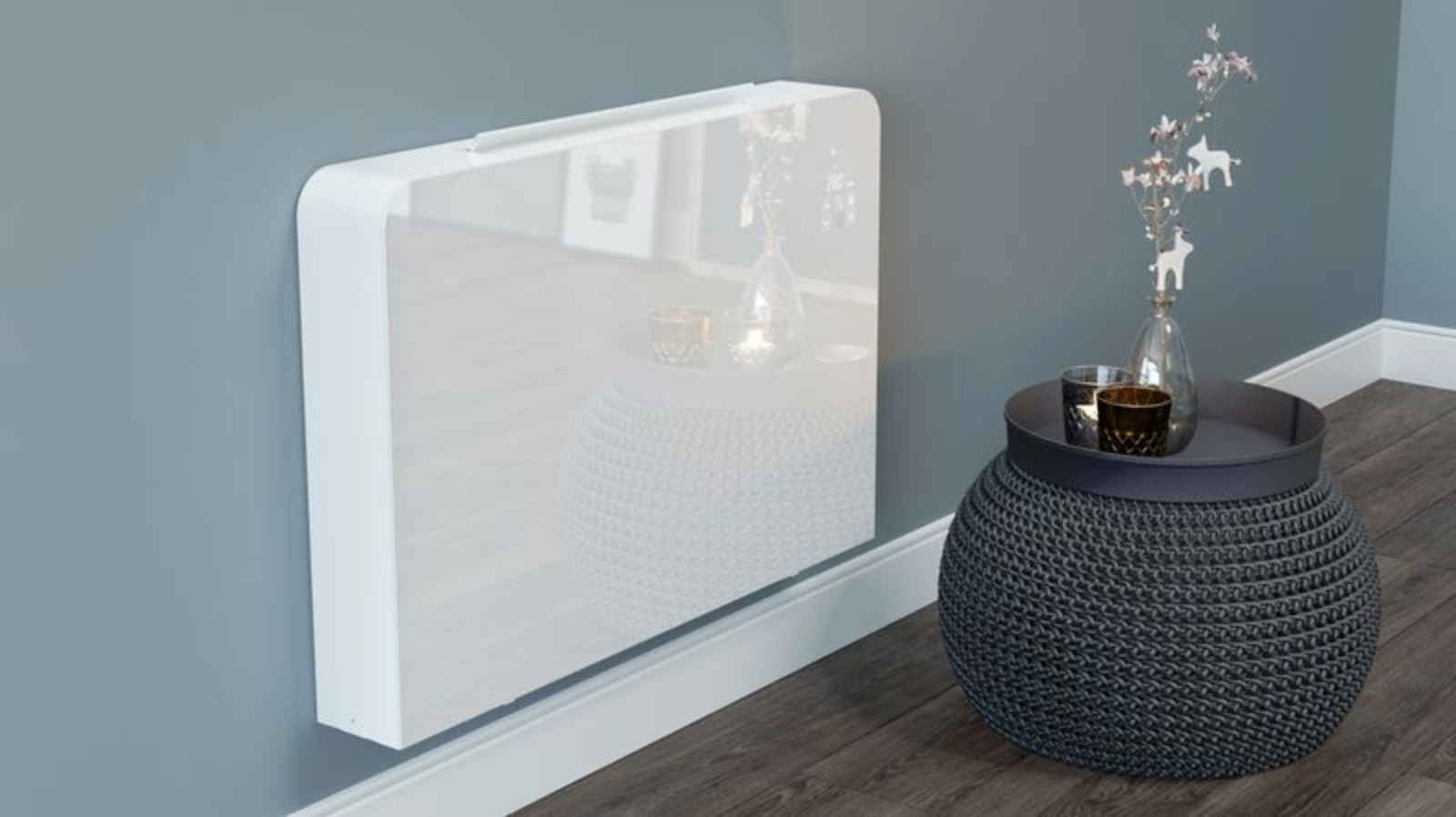

Glass has attractive lines with front surface in real glass, to fit pleasantly in residential rooms, and enclosing in just 13 cm of thickness the best of hydronic technology and temperature control, with unparalleled silence.

DESCRIPTION

Glass is the design hydronic terminal with a thickness of only 13 cm, with front surface in semi-gloss glass.

With high efficiency heat exchanger and tangential fan unit with DC Inverter Motor with high silence, with independent digital control system on board and Modbus, complete with load-bearing structure and white steel mantle, with completely smooth white front surface with attractive vitrified finish and touch display in transparency. Air return from below and motorized concealed air supply flap. Condensate discharge for vertical installation and removable filter with thin texture. Left side connections ¾ ”

NO GRILLES

Glass is equipped with a supply flap that opens only when needed. Thus maintaining an impeccable aesthetic even for the most demanding decors.

GLASS: DESIGN AND VERSATILITY TOGETHER

Glass Radiantors are designed to:

• Heat, cool and dehumidify
• Emit power with high efficiency at high as well as low supply temperatures (excellent for heat pump systems).
• Be connected to both traditional boilers, as well as condensing boilers, solar systems and heat
• Be installed even in the quietest rooms (bedrooms, residential rooms in general), thanks to the acoustic performance of the DC Inverter Motor combined with the tangential fan and RADIANTor
• Be controlled by chrono programmers, as well as by BMS (Buliding Management System) or home automation systems in Modbus protocol.

CONNECTABLE WITH 2 AND 3 WAY KITS

It is possible to connect Glass to the plumbing system using the two or three-way thermostatic connection kits with by-pass. The kits remain hidden inside the mantle. The hydraulic connections are placed on the left side.
